INSTALLATION PROCEDURE
Type D Installation
(faucet with straight end)

> Check the installation movie

The water purifier used in this video is the faucet mount type, but the counter-top type can be installed in the same way.

The MK series body is shown below. The same process is used to install the SX series and counter top type water purifiers.

Type D installation parts are optional on certain model.

  • Type D-S

  • Type D-B

  • Type D-P

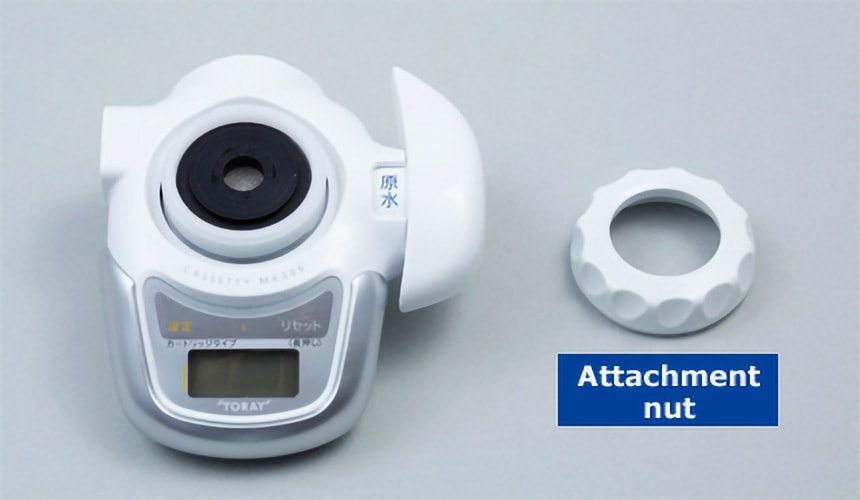

Remove the Attachment nut and Fastening ring from the valve body

Remove the Attachment nut and Fastening ring from the valve body

Attach the Screw fastener.

Attach the Screw fastener.

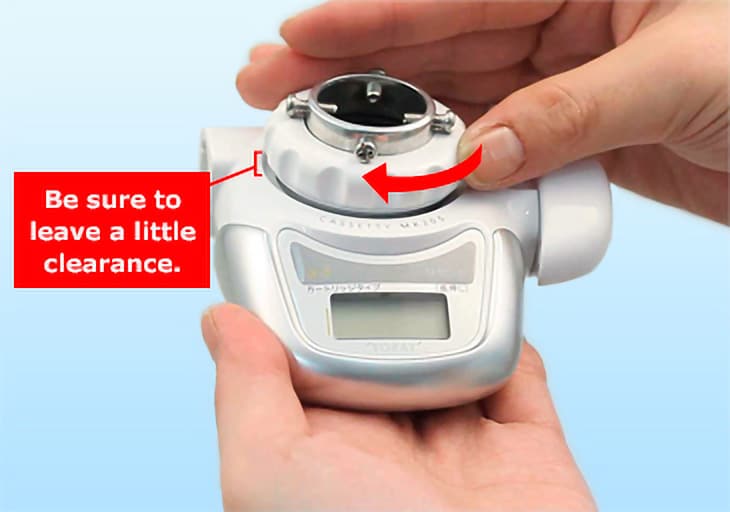

Gently turn the Screw fastener nut one half turn so it stays in place. Do not fully tighten.

Attach the valve body to the faucet.

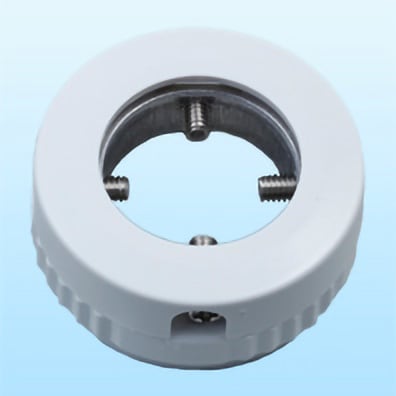

With cover

With cover
(Type D-S)

With cover

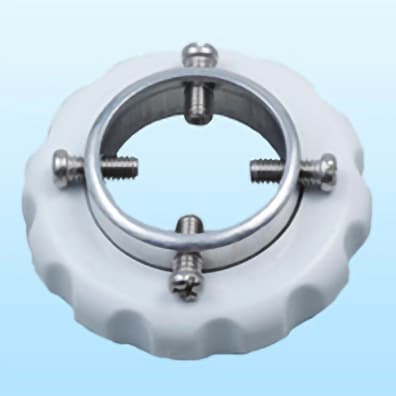

Without cover

Without cover
(Type D-B, Type D-P)

Without cover

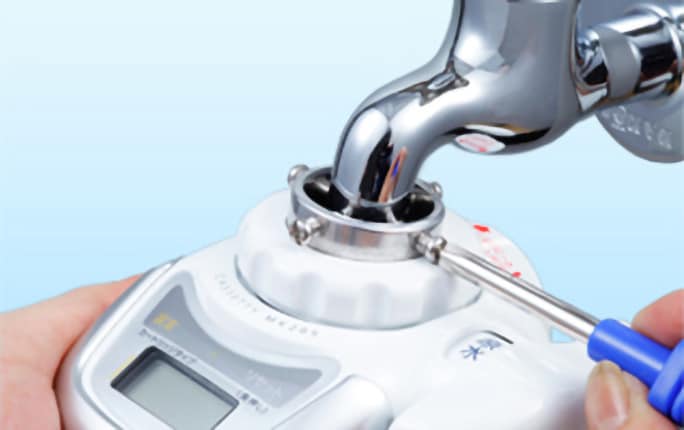

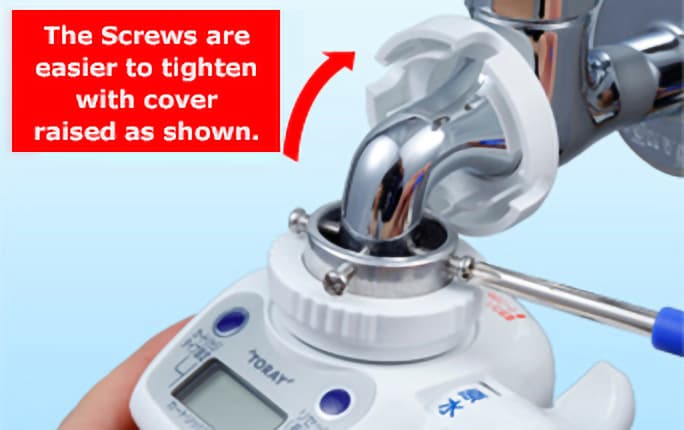

Holding the valve body firmly against the faucet, evenly tighten all screws. The faucet should be centered.

Holding the valve body firmly against the faucet, evenly tighten all screws. The faucet should be centered.

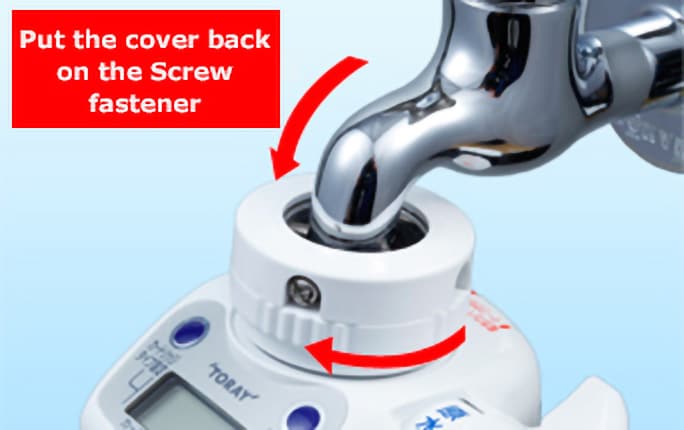

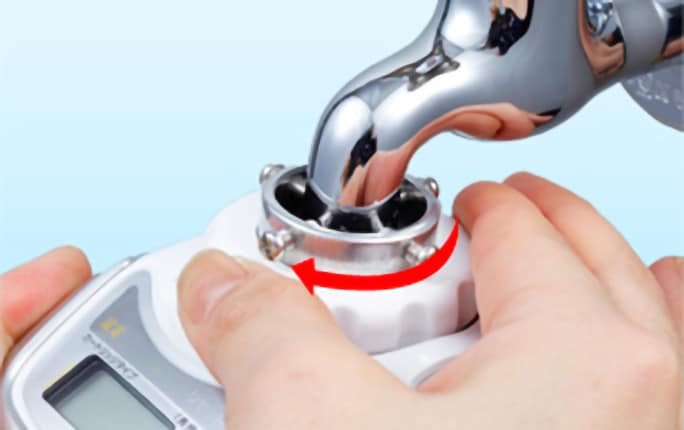

Finish tightening the Screw fastener nut.

With cover
(Type D-S)

With cover

Without cover
(Type D-B, Type D-P)

Without cover

The nut must be securely fastened to seal the faucet and packing and prevent leaks.

The nut must be securely fastened to seal the faucet and packing and prevent leaks.
