INSTALLATION PROCEDURE
Type C Installation
(internal threaded with aerator)
> Check the installation movie
The water purifier used in this video is the faucet mount type, but the counter-top type can be installed in the same way.
The MK series body is shown below. The same process is used to install the SX series and counter top type water purifiers.
Prepare the following parts (included in the Adapter set) before installation.
-
Internal thread aerated
faucet adapter (white) -
Internal thread aerated
faucet adapter (gray) -
Attachment tool
COIN
Not included in all models. A coin may be used in place of the attachment tool.

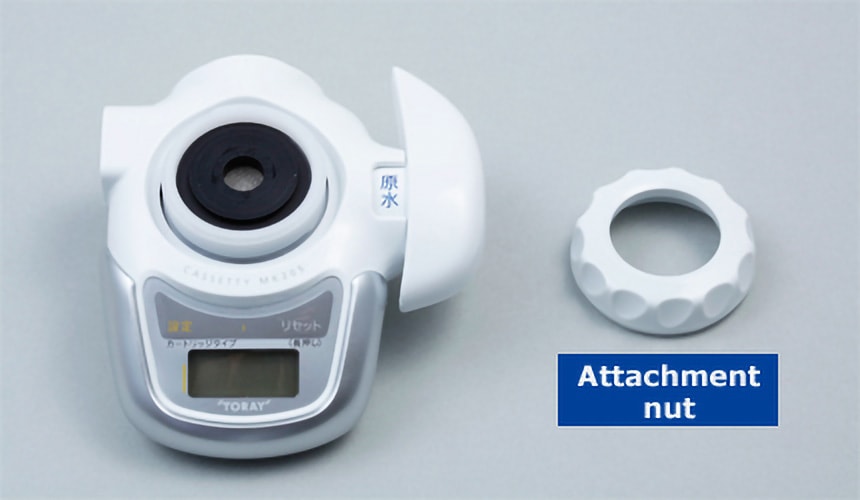

Remove the attachment nut and fastening ring from the valve body.

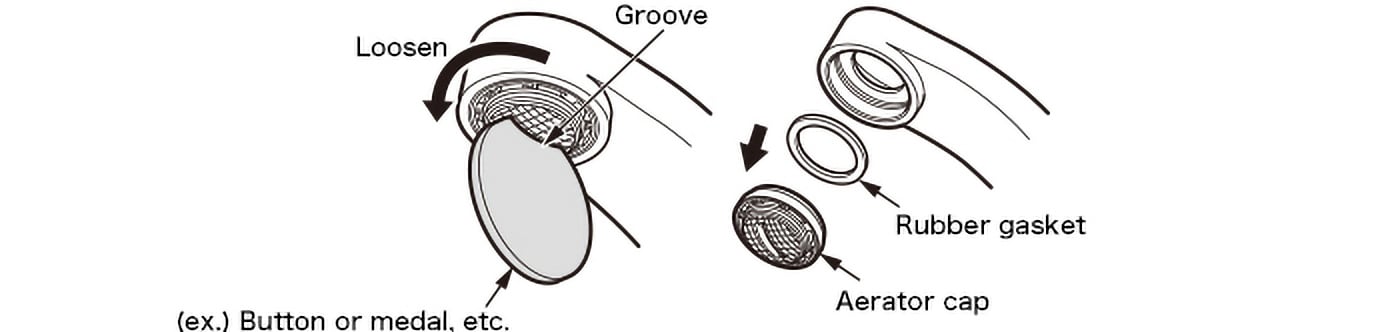

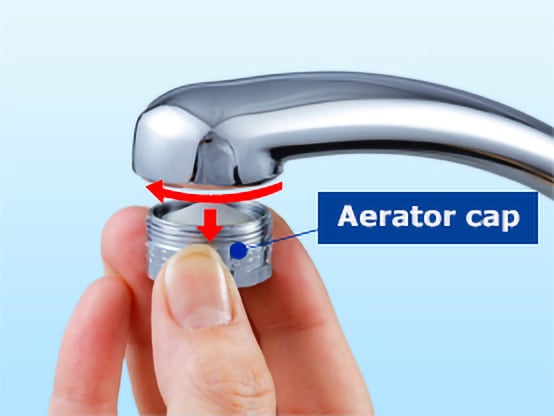

Remove the faucet aerator.
*Chips and cracks in the faucet head may cause leaks.
Here is another C type.
Place the attachment nut over the faucet spout.
Be sure to use the adapter whose threads match the faucet.

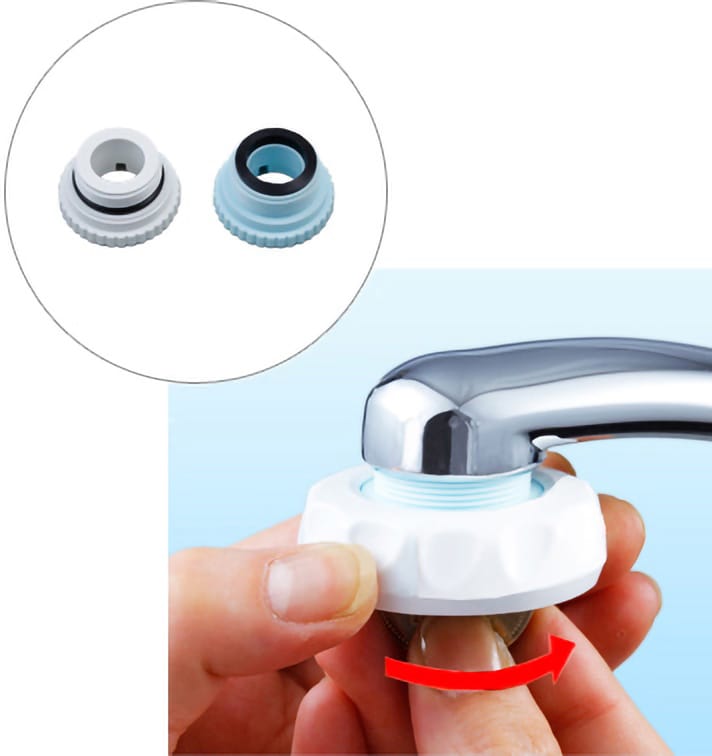

Screw the adapter onto the faucet through the attachment nut and tighten it vertically.

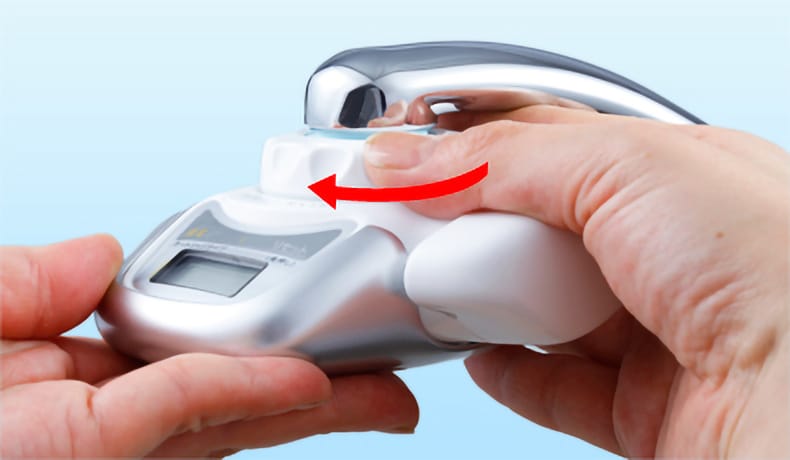

Attach the valve body using the attachment nut
-
Warning !
- Using a tool to tighten the Attachment nut may damage it.
When removing the valve body, avoid touching any damaged areas as it may cause injury.
